Home > Digital Hardness Tester >

HR-145D Digital twin Rockwell and Superfical Rockwell Hardness Testing Machine

Leader Precision Instrument Co., Ltd

HR-145D Digital twin Rockwell and Superfical Rockwell Hardness Testing Machine

Supply Ability : 50, 000PCS/Year

Payment Terms : L/C, T/T, Western Union, MoneyGram

Place of Origin : CHINA

MOQ : 1 Piece

Price : negotiation

Brand Name : HARDRULER

Model Number : HR-145D

Certification : CE

Packaging Details : Standard exporting package

Measuring Range : A, B, C, D, E, F, G, H, K, L, M, R

Standard : ISO, ASTM, GB/T

Calibrating Method : Standard Hardness Test Blocks

Product Name : Digital Rockwell and Superficial Rockwell Hardness

Rockwell Scales : A, B, C, D, E, F, G ,H, K, L ,M, R, P, S, V

Superficial Rockwell Scales : 15n, 30n, 45n, 15t, 30t, 45t, 15W, 30W, 45W, 15X,

Display Conversion to : Hv, Hb, Hr Scales

Preload : 3kgf(29.4n), 10kgf(98.07n)

Rockwell Test Loads : 60kgf(588.4n), 100kgf(980.7n), 150kgf(1471n)

Superficial Rockwell Test Loads : 15kgf(147.1n), 30kgf(294.2n), 45kgf(441.3n)

Dwell Time : 1-60s

Hardness Indication : Digital LCD Display

Origin : Guangdong

HS Code : 9024800000

Port : Shenzhen, China

Contact Now


Usage
Model HR-145D Digital Twin Rockwell Hardness Tester is suitable to determine the Rockwell & Superficial Rockwell hardness of ferrous metals, alloy steel and hard alloy, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc.

Features & Advantage

  • Twin tester--Regular Rockwell & Superficial Rockwell hardness for metal and plastic material.
  • Conversion to all other hardness scales, such as Vickers and Brinell
  • Menu Operated LCD screen, with Conversions, Date, Time
  • Integrated printer for test result and statistics
  • RS-232C interface is available
  • Accuracy conforms to EN-ISO 6508-2 and ASTM E-18

Specifications

Product name Digital Rockwell and superficial Rockwell Hardness Tester
Model HR-145D
Rockwell Scales A, B, C, D, E, F, G ,H, K, L ,M, R, P, S, V
Superficial Rockwell Scales 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y
Display conversion to HV, HB, HR scales
Preload 3kgf(29.4N), 10kgf(98.07N)
Rockwell Test loads 60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
Superficial Rockwell test loads 15kgf(147.1N), 30kgf(294.2N), 45kgf(441.3N)
Dwell time 1-60S
Hardness indication Digital LCD Display
Resolution 0.1HR
Loading Control Automatic
Data Output RS-232C and Built-in Printer
Max. Height of Specimen 175mm
Instrument Throat 165mm
Dimension (L*W*H) 550 x 260 x 780mm
Gross/Net Weight 120Kg/90Kg
Power supply 110V/220V, 50HZ
Accuracy EN-ISO 6508 , ASTM E-18, GB/T230.2

Standard delivery

Main unit Thermal printer Data-output RS-232C
Cone Diamond Indenter Ø 1.5875 Ball Indenter Ø1.5875mm Steel Ball
Large Flat Anvil Small Flat Anvil V-notch Anvil
Hardness Test Block (85-100) HRB Adjustable feet Accessories case
Anti-dust cover Instruments certificate Installation & user manual

HR-145D Digital twin Rockwell and Superfical Rockwell Hardness Testing Machine



Product Tags:

digital rockwell hardness testing machine



HR145D rockwell hardness testing machine



15N digital rockwell hardness tester


Cheap HR-145D Digital twin Rockwell and Superfical Rockwell Hardness Testing Machine for sale

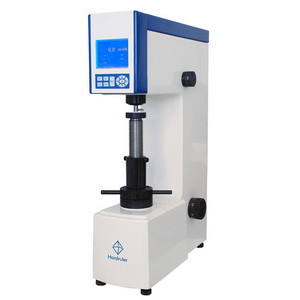

HR-145D Digital twin Rockwell and Superfical Rockwell Hardness Testing Machine Images
